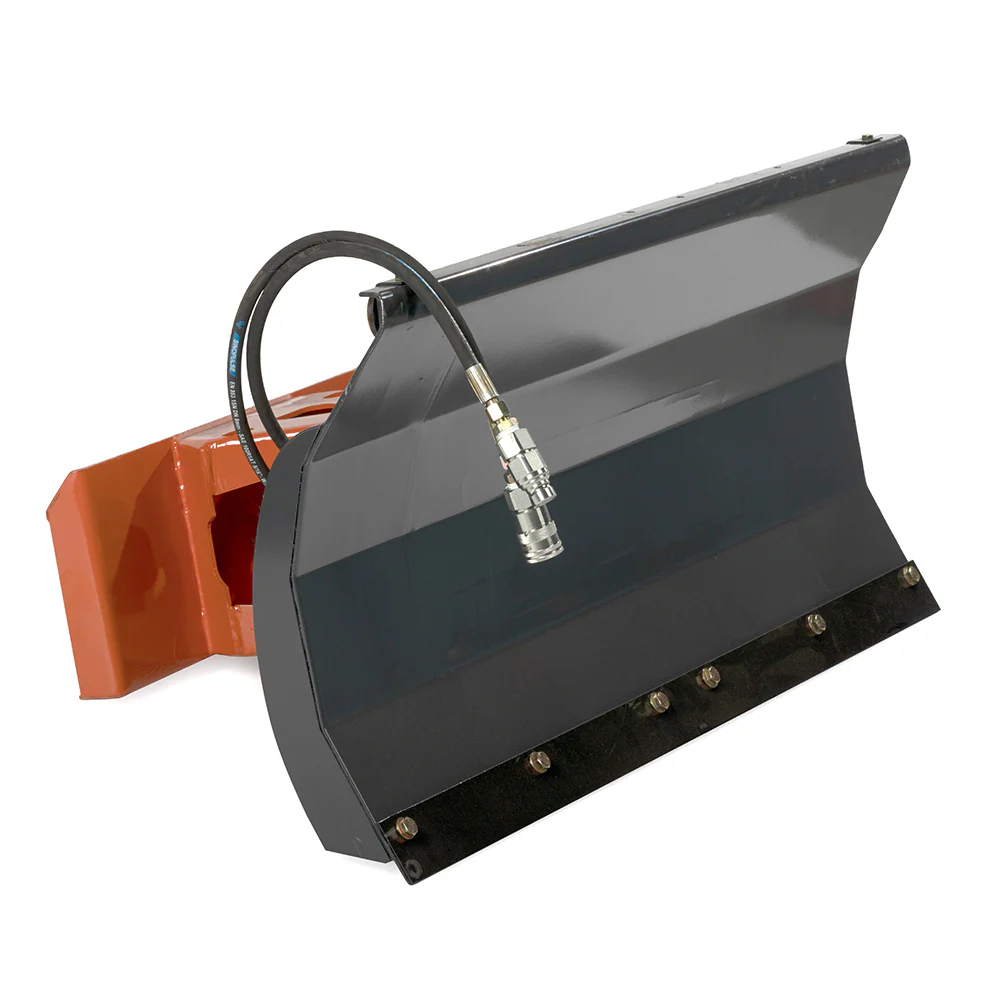

TITAN MINI SKID HYD ANGLE PLOW
Hook this 48" dozer blade up to your mini skid steer’s hydraulics to lift, curl, and angle the blade 68-degree side to side without leaving the cab.
Product Overview
Hook this 48" dozer blade up to your mini skid steer’s hydraulics to lift, curl, and angle the blade 68-degree side to side without leaving the cab. The blade makes easy work of pushing dirt, sand, and rubble and has a replaceable bolt-on cutting edge that breaks up snow and ice, protecting the moldboard and allowing you to cover more ground fast. This attachment has a universal mounting plate and is compatible with Toro Dingo, Ditch Witch, Multi One, Ram Rod, Vermeer, Finn Eagle, Boxer, Thomas, and others with Toro style mounting.
*Note: This attachment is not compatible with Bobcat, Kanga Kid, or Prodigy.
Specifications
Details
48" hydraulic dirt & snow pusher blade
Hooks up to mini skid steer’s hydraulics
Quick tach mounting system
Replaceable cutting edge
Angles 68-degree side to side
Reinforced moldboard
Single cylinder operation
Hoses and flat faced couplers included
High-flow not required
Overall Height
23-in.
Overall Width
48-in.
Overall Depth:
26-in.
Cutting Edge Dimension:
48-in. x 3-in. x 0.25-in.
Blade Thickness:
13/64-in.
Max Turning Angle:
+/- 68-degrees
Max Pressure:
3,000 PSI
Material
Finish
Powder-Coated Charcoal/Orange
Material
Cold-Rolled Steel
Weight
Product Weight
188 lb.
